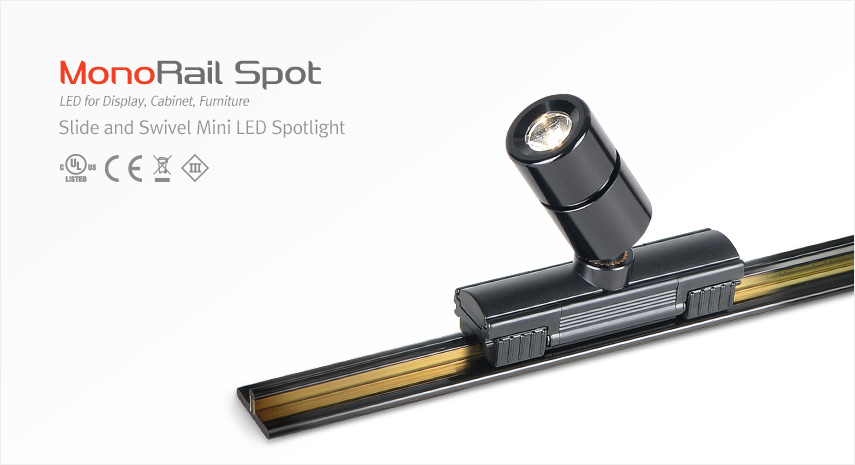

Monorail Pro Spot

Features

• Voltage : DC 24V
• Operating temperature : 0~45°C
• Lifetime : 50,000hrs / 70%
• Available color : 2700K, 3000K, 4000K
• Color rendering : Ra > 85
• Lumens : 95lm
• Degree of protection : IP20
• Beam angle : 35°(STD), 15° available lens option
• Total energy consumption: 1.3W

• Maximum Connection: 96 Watts per power feed
• # of fixtures that can be connected to one power feed based on driver wattage

Specs

• Voltage: 24V DC
• Operating Temperature: 32-113 °F (0-45 °C)
• Available Color: 2700K, 3000K, 3500K, 4000K
• Efficiency: 74lm/W
• IP Rating: IP 20
• Finish: Aluminum, Black, White
• Certifications List: UL, CE, CCC
• Watts per Linear Foot: 1.3W

External Dimensions

Accessories & Components

MonoRail Spot		MRS1 [Color]K-24V-SV MRS1 [Color]K-24V-BK	MonoRail Spot Silver MonoRail Spot Black
Power supply track		MNR-Rail (20m)	Power supply track in Roll without adhesive tape (20 meters) (MNR-BRACKET 40 pcs, Connecting bracket 20 pcs, MNR-CAP 40 pcs, Mounting Screw 120 pcs are included in each inner box)  Color : White, Gray, Black
		MNR-Rail (1.2m)	Power supply track with adhesive tape (1.2 meters) (MNR-BRACKET 3 pcs, MNR-CAP 2 pcs, Connecting bracket 5 pcs are included in each inner box)  Color : White, Gray, Black
Adhesive tape		Adhesive tape	Adhesive tape for MNR-Rail (16.5 meters)
Power cable		MNRPC	Power supply cable to the MNR-Rail (2500 mm)
Connect cable		MNRPTC MNRPTC1 MNRPTC2 MNRPTC4 MNRPTC6	150mm(6inch) 300mm(1feet) 600mm(1feet) 1200mm(4feet) 1800mm(6feet)
LED driver		FLC30-24V/T  FLC75-24V/T	30W 24V  75W 24V  with 12way distributor
Mounting bracket		MNR-BRACKET	Standard MNR-BRACKET( 2 pcs included with fixture, no purchase necessary)
		MNR-BRACKET1	Optional
MNR-Rail extrusion line		MNR-EXL-SV (1.2m) MNR-EXL-BK (1.2m)	Silver Black
MNR-Rail extrusion corner		MNR-EXC-SV (1.2m) MNR-EXC-BK (1.2m)	Silver Black
MNR-Rail extrusion pole		MNR-EXP-SV (300mm) MNR-EXP-BK (300mm)	Silver Black
End cap		MNR-CAP

Power Drivers

XLAV(L)80-124V-SSB

XLAV(L)80-124V-SSB

Hardwire Driver

details

Example Applications

Here Theater
