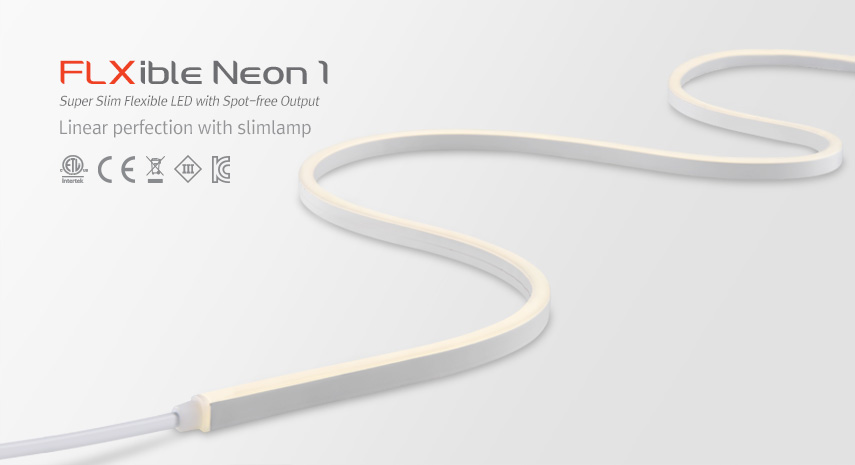

Neon 1

Super Slim Flexible LED, IP67, Horizontal Bend, Interior & Exterior Use

Features

  • Bend direction horizontal
  • Ultra slim spot free illumination
  • Dimmable with 0-10V, forward/reverse phase
  • IP67 for Interior and Exterior Applications
  • Field Cuttable (38.5mm) for customized length
  • Available in standard lengths of 1, 2, 3, 4, 5M reels

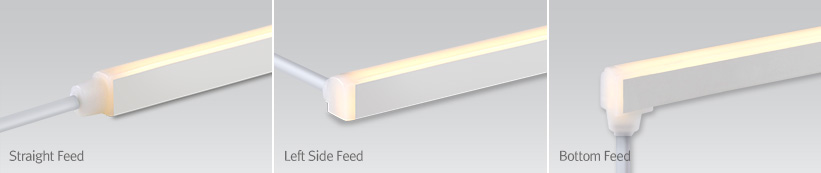

Factory Terminations Available

Factory Terminations Available

New Image Block

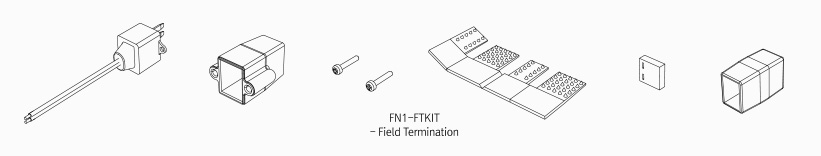

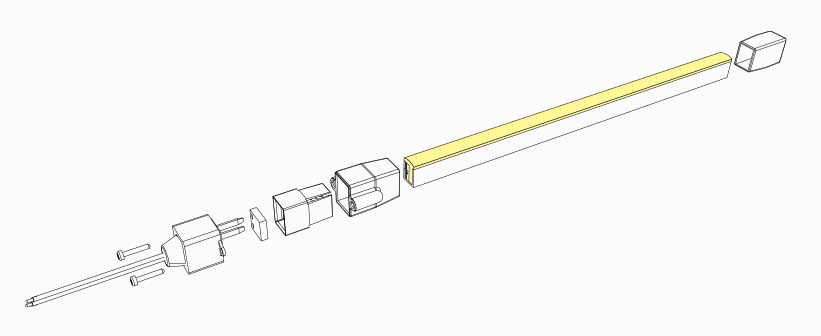

Field Termination

Field Termination

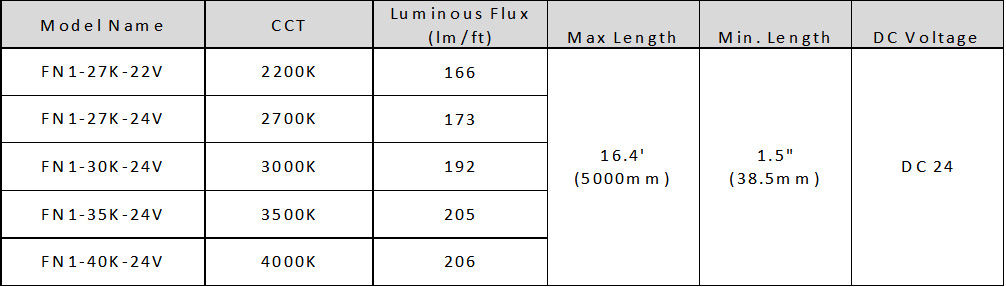

Specs

Units:  US  |  Metric
  • Voltage: 24V DC
  • Operating Temperature: 14℉ to 122℉ (-10℃ to 50℃)
  • Available Color: 2200K, 2700K, 3000K, 3500K, 4000K, Blue, Red, Green
  • Efficiency: 45 lm/w
  • IP Rating: IP 67
  • Finish: Silicon
  • Certifications List: ETL, CE, CCC
  • Watts per Linear Foot: 3.0 w/ft

Download Product Info

FLXible Neon Collection

IES Files - FLX Neon Collection - 24V

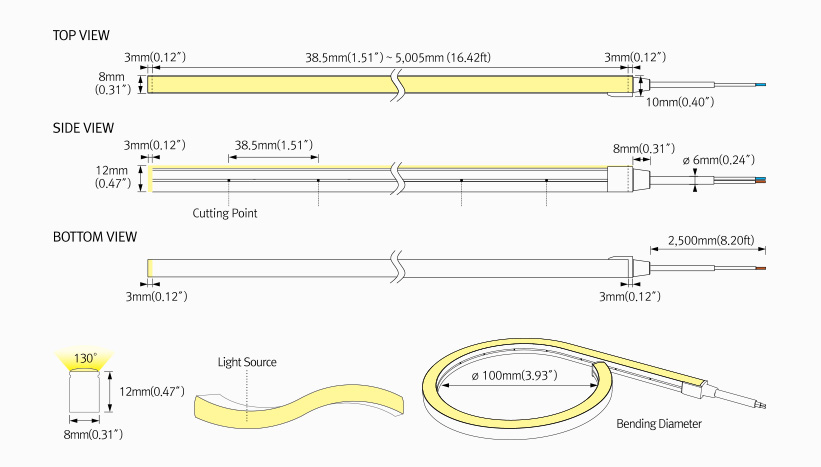

External Dimensions

Units:  US  |  Metric

Feelux Neon 1 external dimensions diagram

Accessories & Components

Power Drivers

Additional Power Options

Additional Power Options

Feelux offers many additonal drivers/power supplies. Please contact factory

Example Applications
